Components & Accessories

A well-designed conveyor system comprises various components and accessories to ensure smooth operation, durability and adaptability to different industrial needs. Here are some key components and accessories.

Roller and Impact Bar

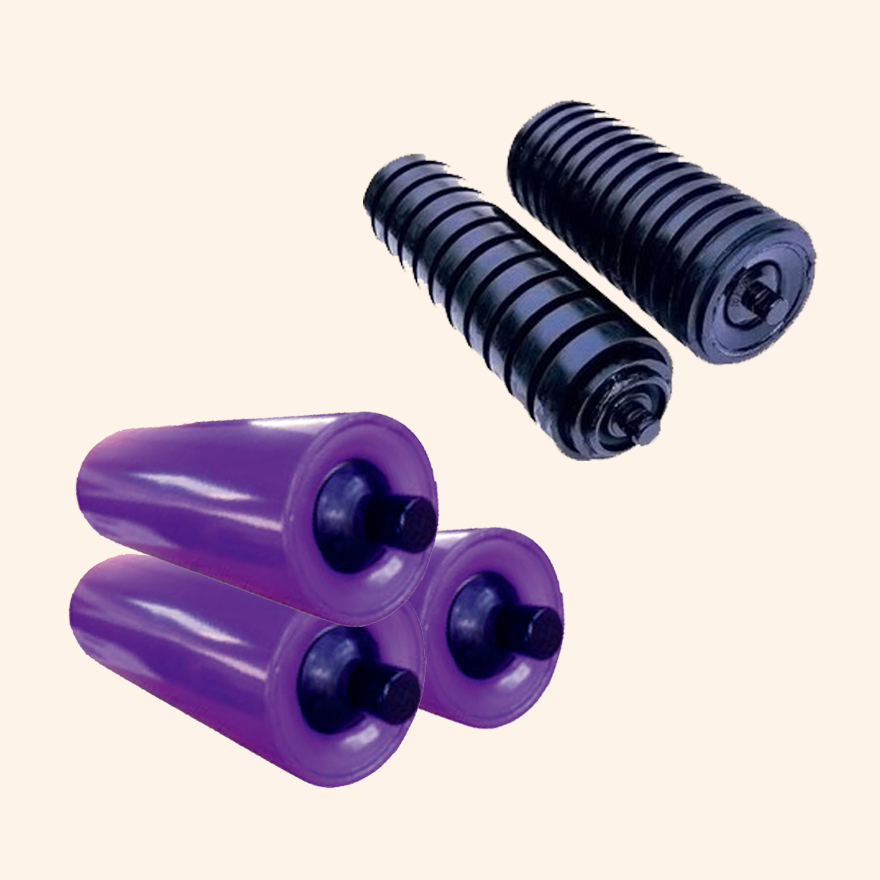

Roller

Rollers/idlers support belt and materials being transported, ensuring minimal friction and efficient operation.

Roller Material: Steel or HDPE

Roller Type: Drive, carrying, return, impact, trough

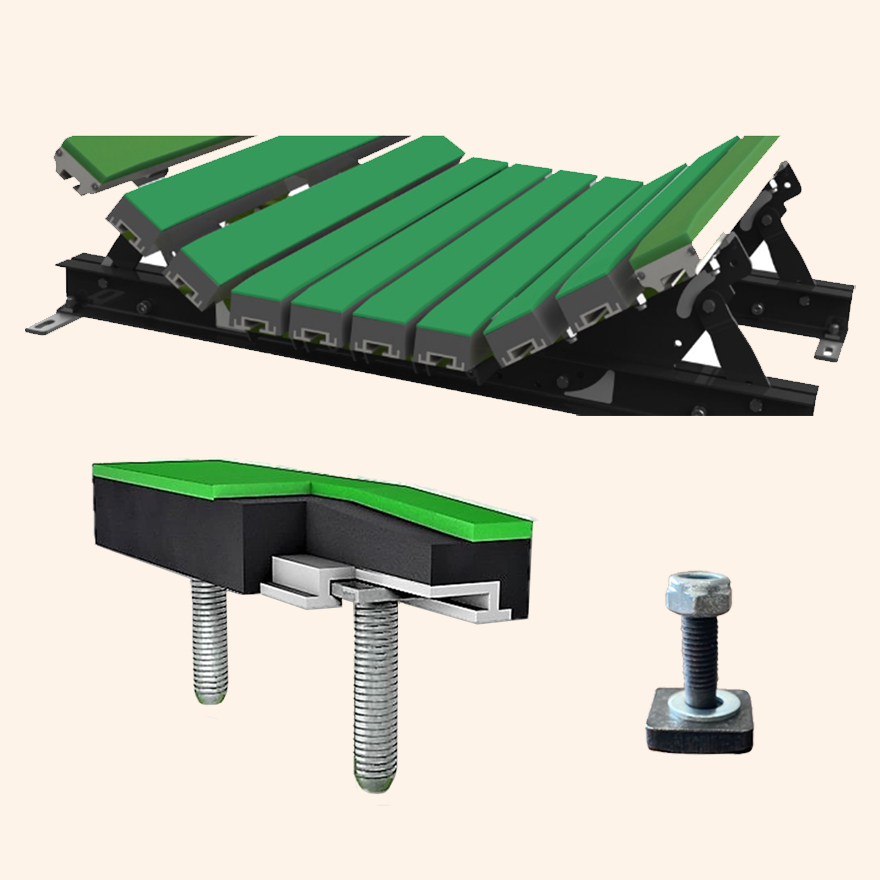

Impact Bar

Impact bar is usually placed under belt at material loading point to absorb impact. The belvelled edge helps belt glide easily onto the impact bar, avoiding abrupt contact that could cause damage.

C/W T Bolt: M16 x 50

Height: 55/75/100mm

Color: Customizable

Sealing Accessories

PU or rubber skirts are belt’s guardians against material spillage

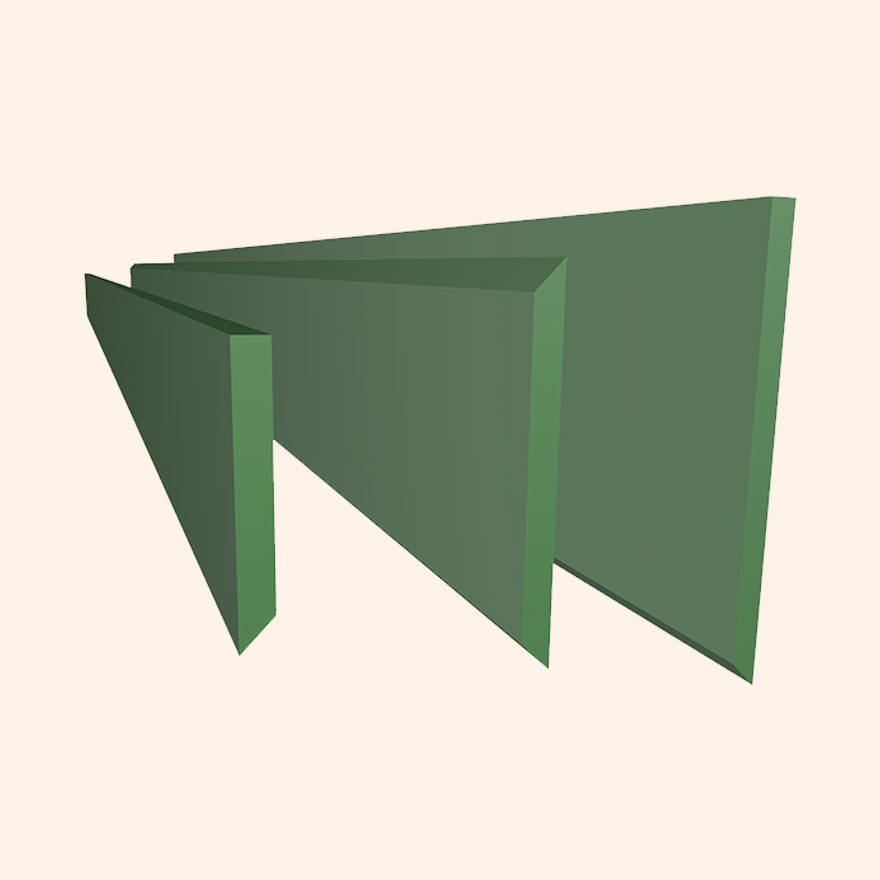

Poly Skirt Standard

100% polyurethane

Poly Dual Seal

100% Polyurethane

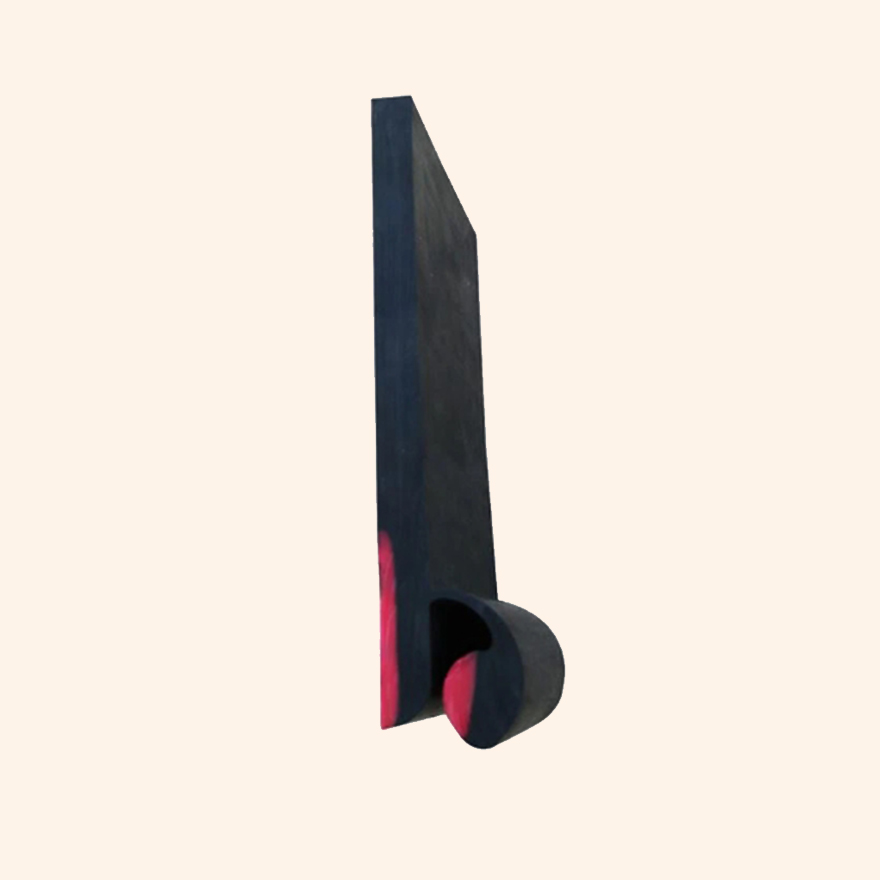

Dual Seal (Rubber+PU)

Rubber + Polyurethane Combo

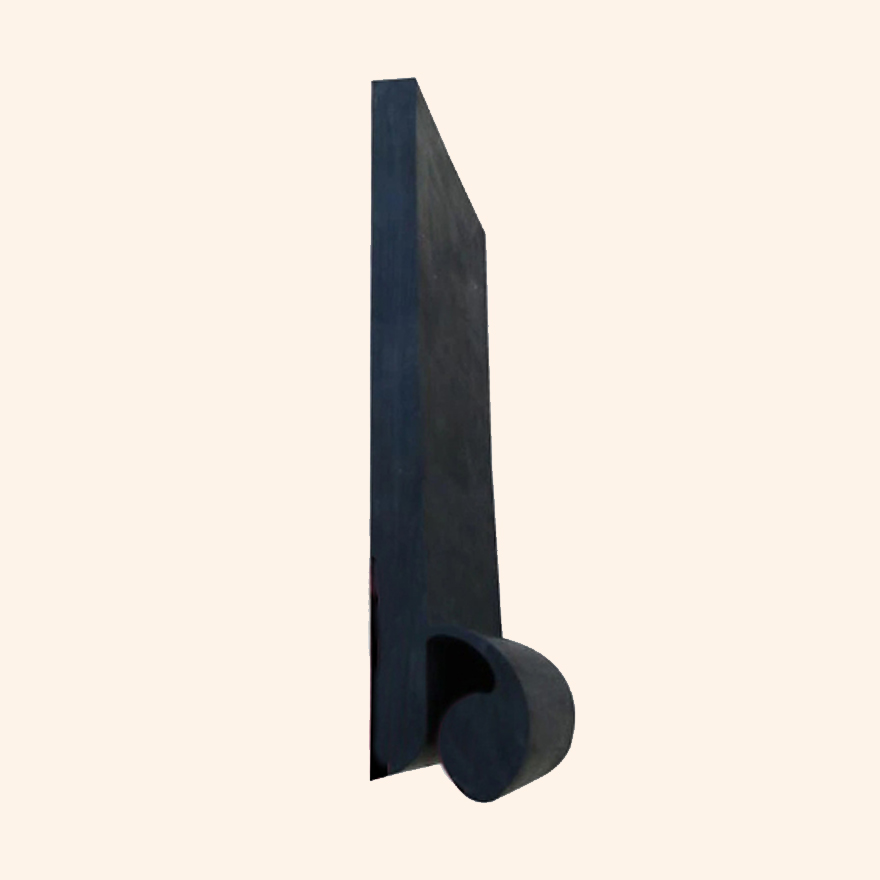

Dual Seal (Rubber)

100% Rubber

Belt Cleaner Blade

Poly Blade

Avoid Material Build Up

Polyurethane blade comes in various shapes and designs as part of belt cleaner system.

It can be a single full piece or segmented multiple pieces for easy replacement.

Screening Accessories

Polyurethane mesh or steel wire mesh for material screening

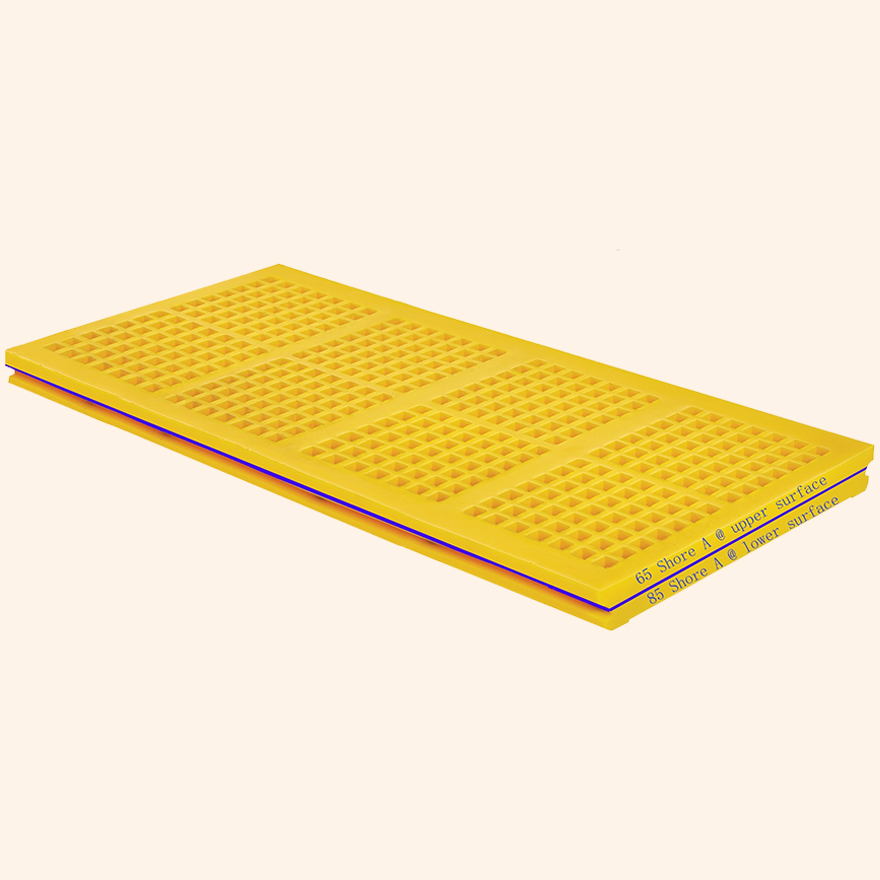

PU Mat

Polyurethane mat with single or dual shore

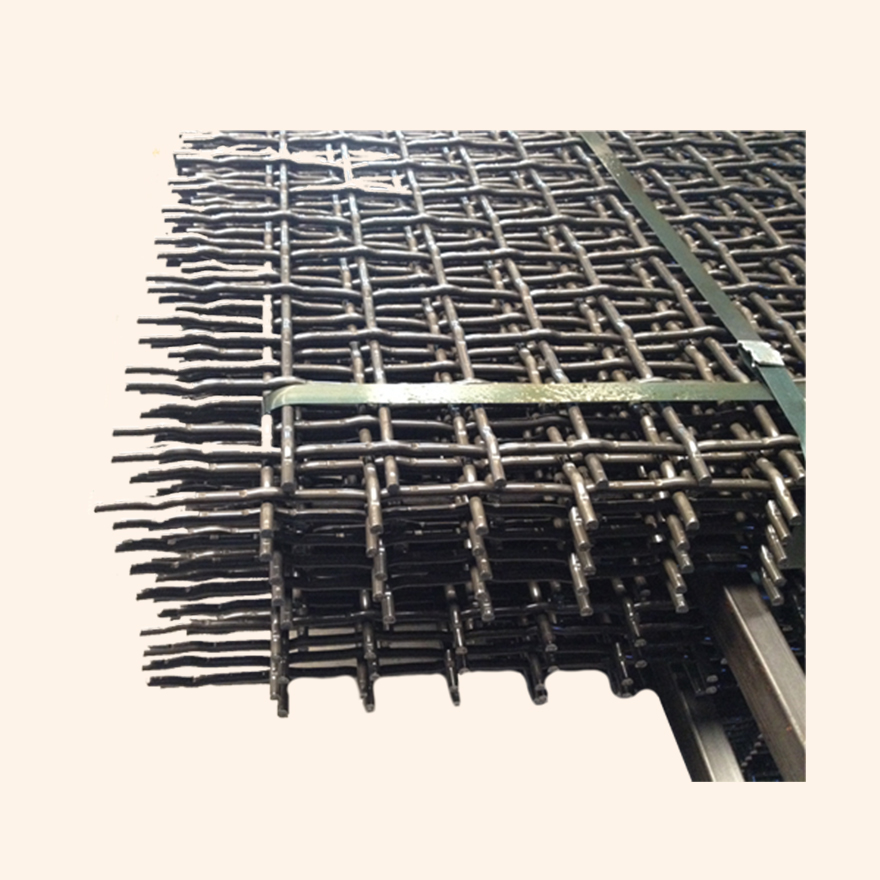

Steel Mesh

Steel material

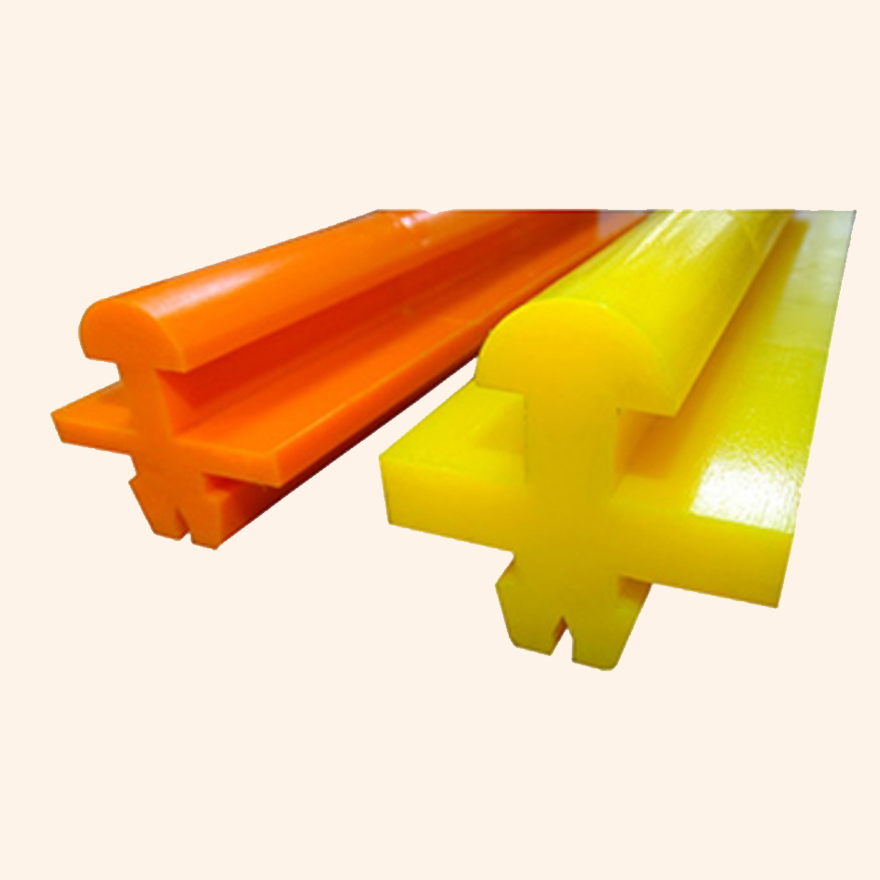

PU Nocking BAR

Polyurethane bar to connect the PU mats

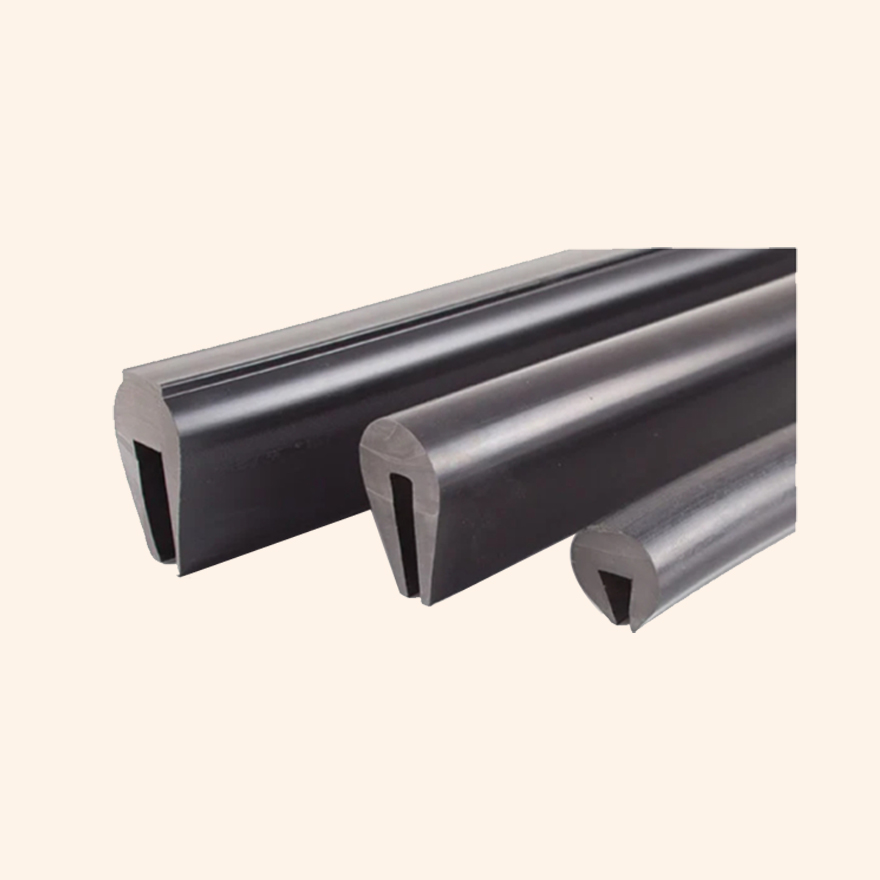

Rubber/Poly Capping

EPDM rubber or polyurethane as mat support

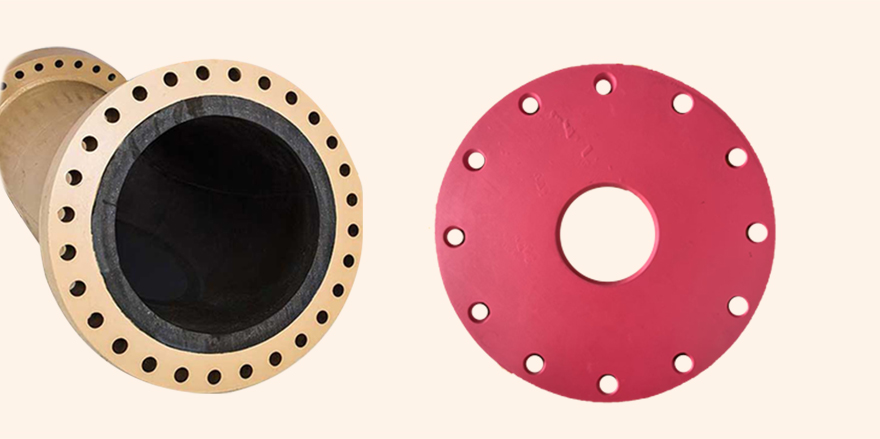

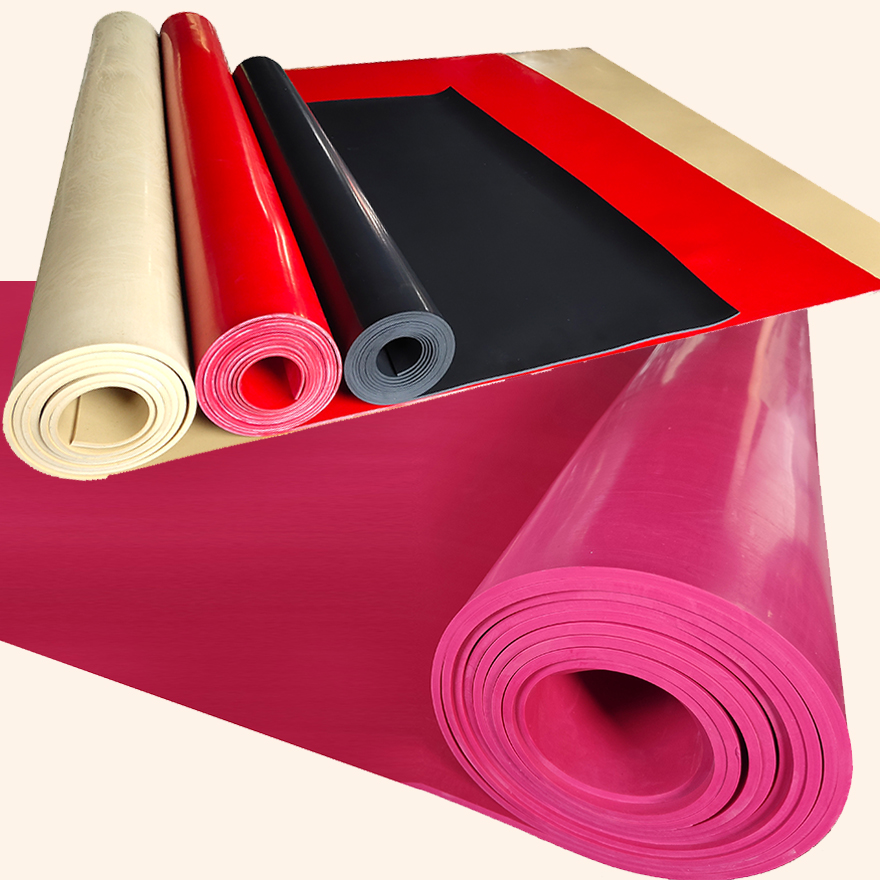

Rubber Sheet

Natural Rubber Sheet

Lining Function

Natural Rubber (NR)’s high flexibility, tear and abrasion resistance makes it ideal lining for chute, pipe and hose.

Tensile Strength: 20MPa

Hardness: 35+/-5 Shore A

Tear Resistance: 40 N/mm

Abrasion Resistance at 5N: 60mm3

Color: Customizable

Surface: Smooth/Fabric Impression

Pulley Lagging

Pulley lagging is a protective layer applied on the surface of conveyor pulley, either by cold bonding or hot vulcanization to increase traction, reduce wear and tear and shed dust material.

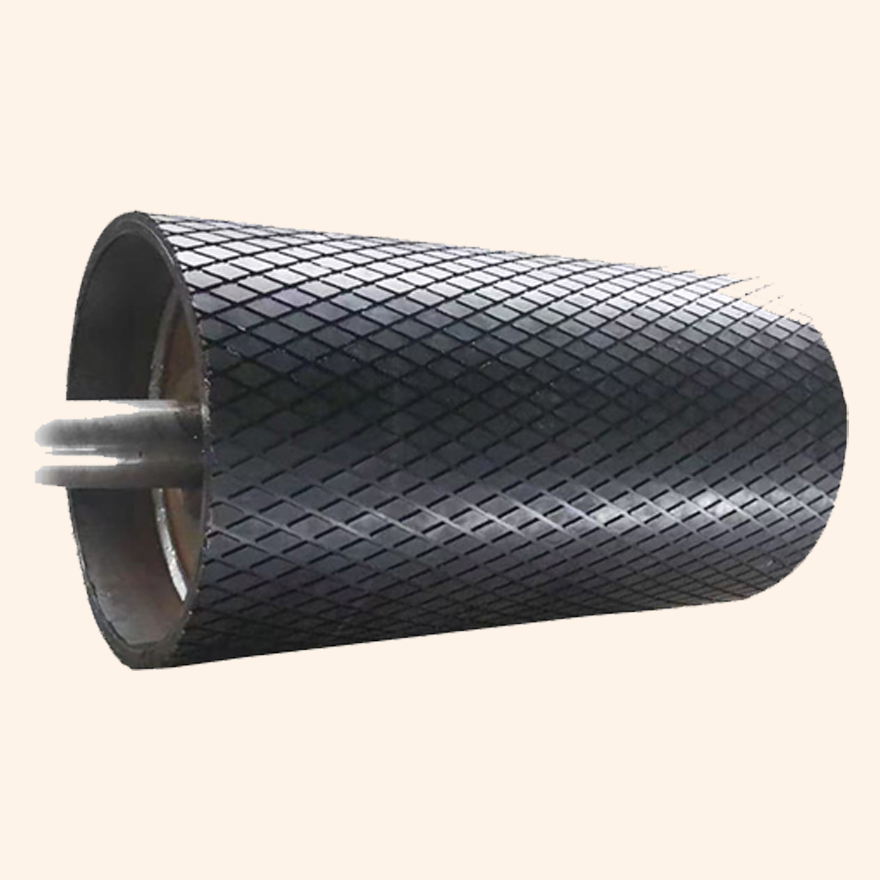

Diamond Groove Lagging

Increased grip, prevent material buildup

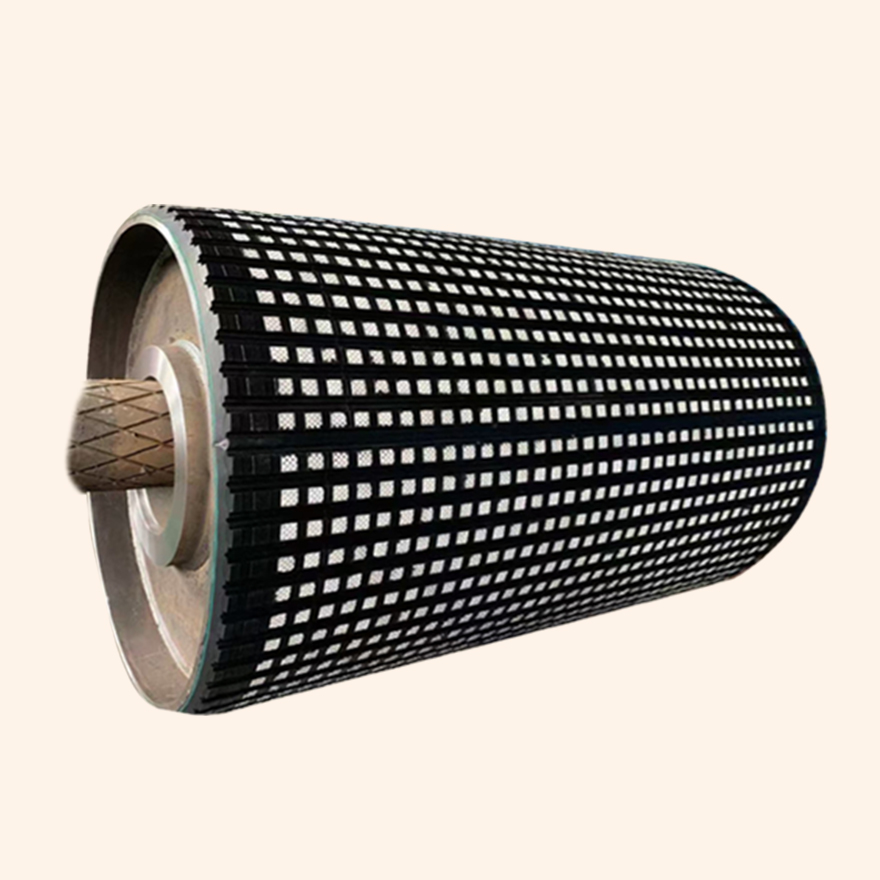

Ceramic Lagging

High abrasion and high temperature resistance

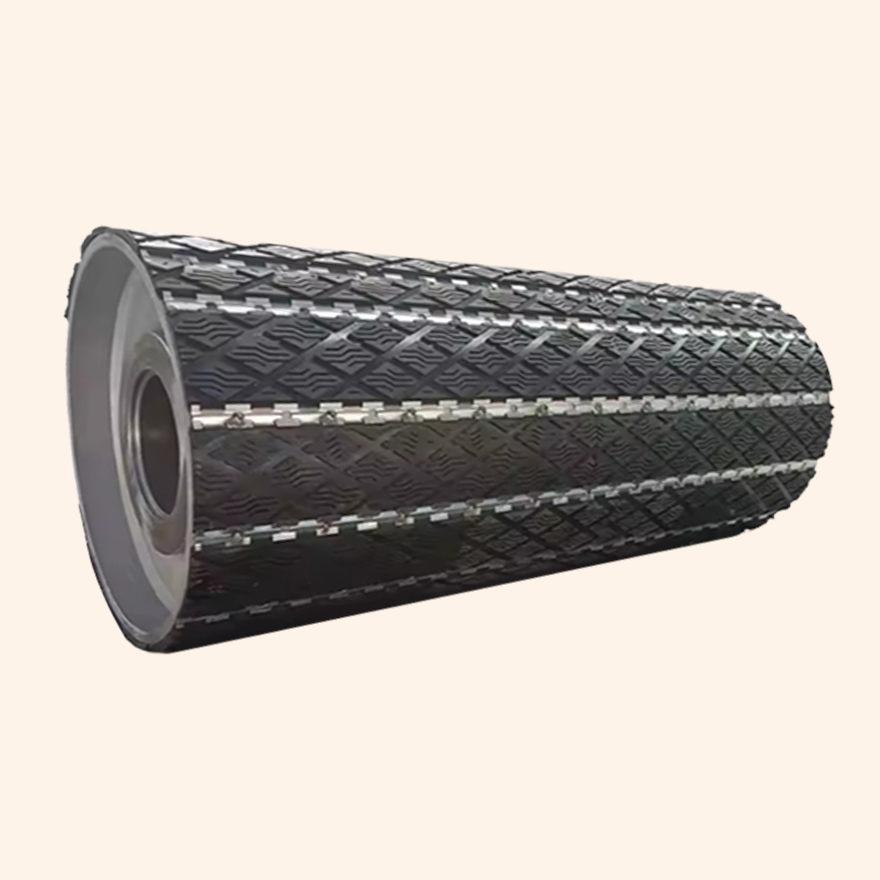

Replaceable Lagging

Easy install and replace

Fastener

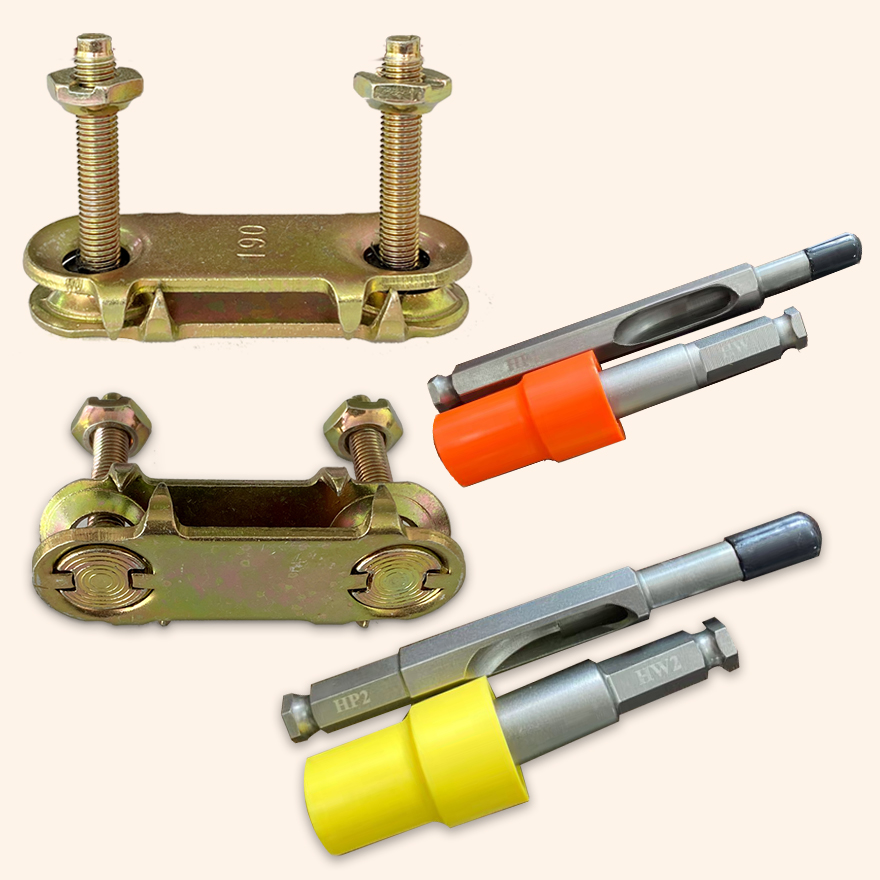

Solid Bolt Fastener

Easy Belt Splice and Repair

Sizes: 140,190, 1-1/2, 2, 2-1/2

Plate Thickness: 2.45mm

Pair with Install Tool: power wrenth+power punch

Customization: size, logo, color

Key Features: Strong bolts, low profile nuts, quick & easy install

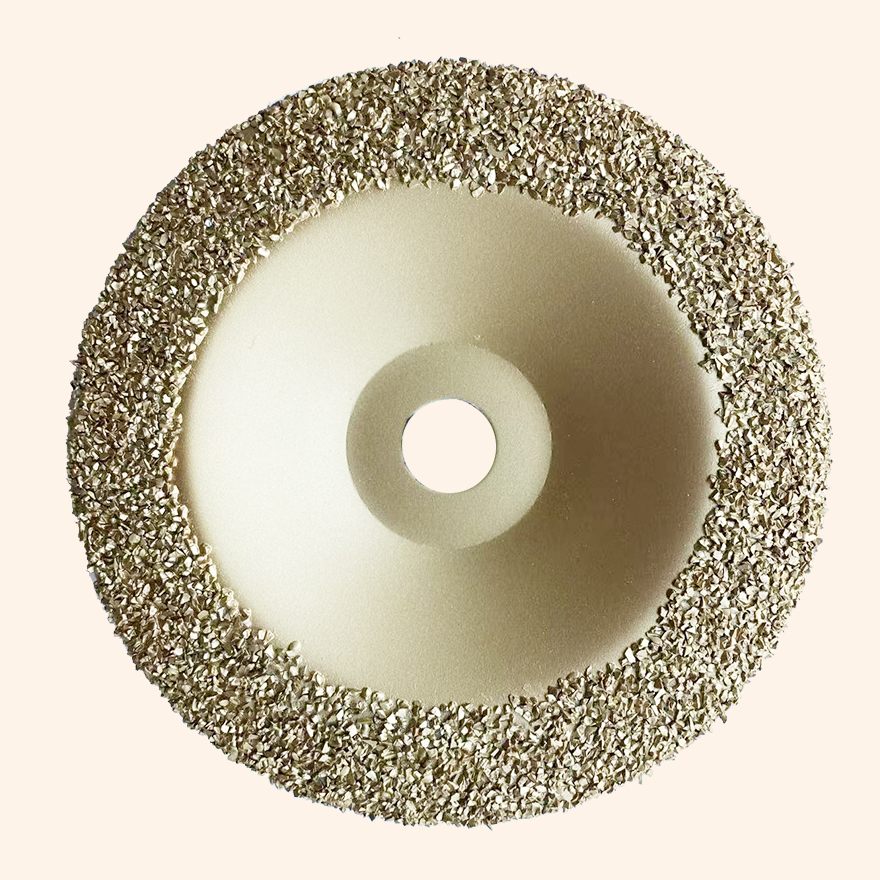

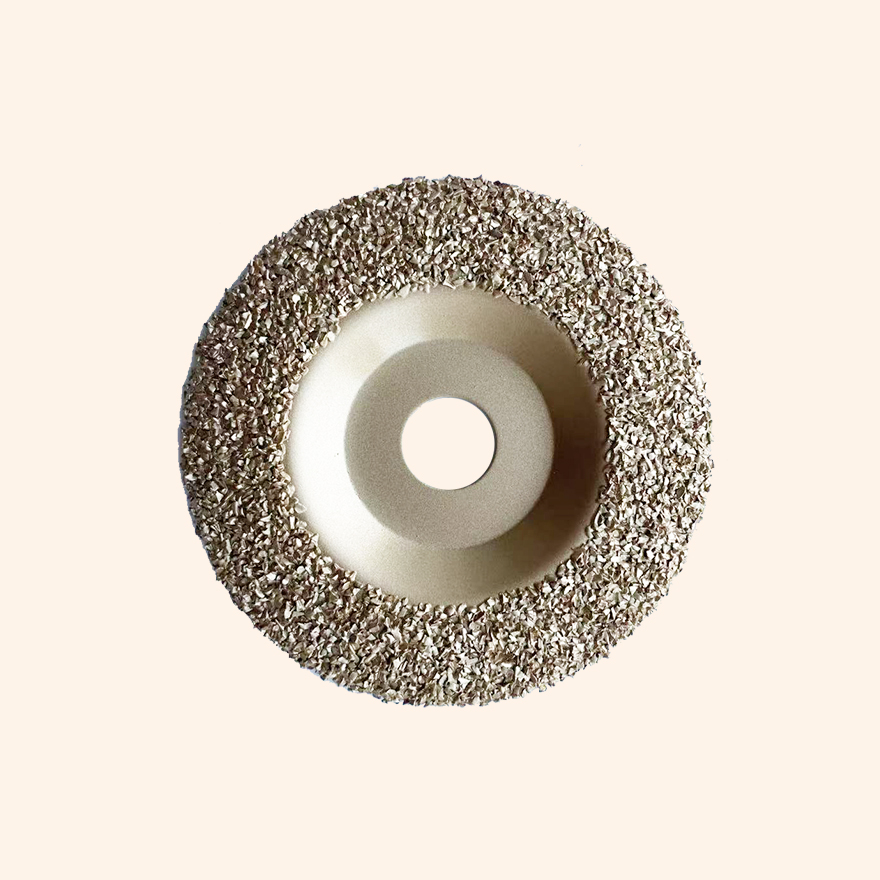

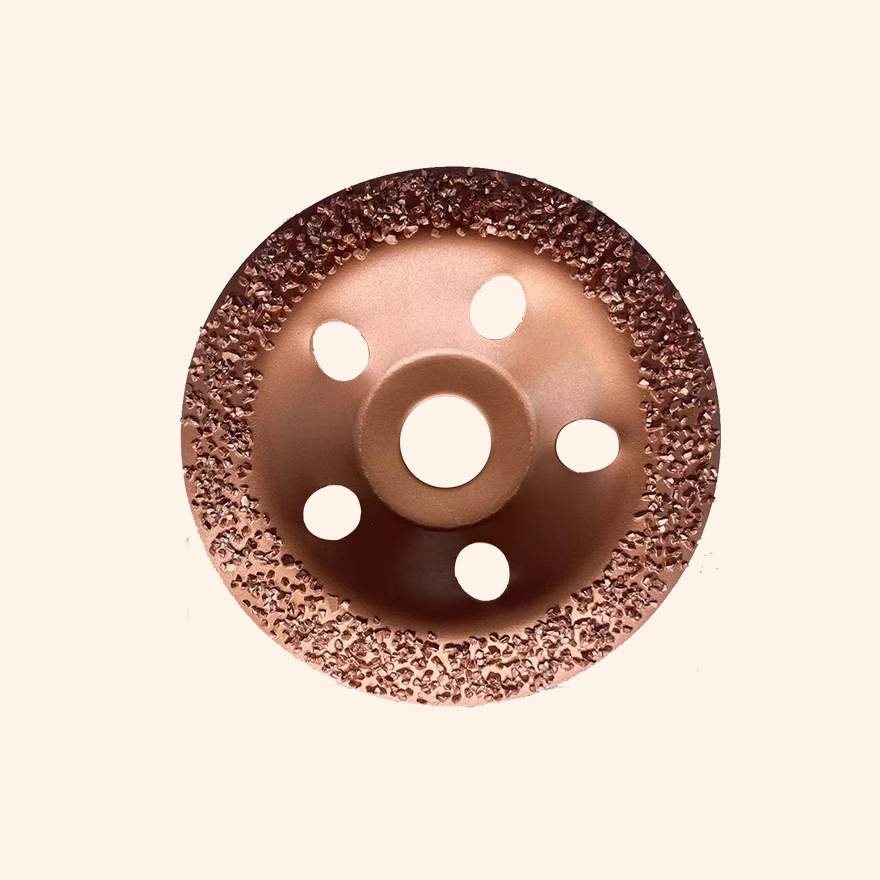

Buffing Disk

Buffing Disk is an essential tool for rubber belt surface roughening, getting it prepared for splice vulcanization, cold bonding or belt repair. Easy to install with standard grinder.

Grits are Tungsten Carbide material for strong and consistent grinding. They are copper bonded to achieve superior heat dissipation and strong adhesion.
